Kamera Modelle

Die Kamera verfügt Über ein rot-blau blinkendes Alarmlicht und eine eingebaute Alarmsirene, welche bei Bewegungsauslösung oder AI Erkennung eines Gesichtes aktiviert werden können sowie über Super True WDR 120dB für super Bilder bei allen Lichtverhältnissen.

Über das Webinterface oder über die App RxCamView ermöglicht die Kamera ein Wechselsprechen und Alarmlicht oder Sirene können manuell ausgelöst werden.

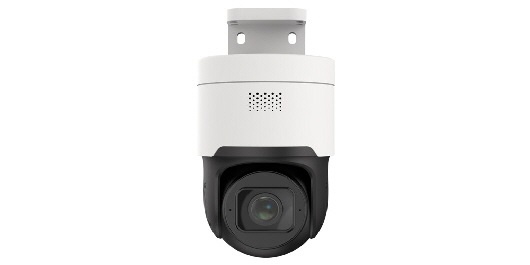

- PTZ- IP- Kamera 8 MP

- Alarmlicht

- Wechselsprechen

- 4 Fach optisches Autofokus Objektiv

- für draußen geeignet

Model : PTZ-DV 2812 AI
Image Sensor : 1/2.7", 8MP
Max. Resolution : 3840(H)×2160(V)
Signal System : PAL/NTSC
Focal Length : F1.6, 2.8 ~ 12mm, 4 x Optical
Angle of View : H:65.7°, V:90.8°, D:120°
Minimum Illumination Color : 0.002Lux @(F1.2,AGC ON) ; B/W : 0 lux @ IR ON
White Balance : Auto/ Manual/ Indoor
AGC : Auto/ Manual
BLC : ON/ OFF

Kamera

Image Sensor:

• 1/2.7" CMOS

Solution:

• SSC30KQ+SC500AI

Mini Illumination:

• Color 0.001Lux@F1.2(AGC ON), Black and White 0Lux(IR ON)

Digital Noise Reduction:

• 2D/ 3D DNR

General Function:

• Horizontal flip and vertical flip

Lightning Protection:

• Lightning Protection 6000V, Comprehensive lightning protection of power supply and network, passed ITU-T K.21-2008, IEC61000-42/IEC61000-4-5

Business Function:

• Support: OSD, real-time video transmission, intelligent detection and alarm linkage, and “Seetong” cloud service, Web preview

Lens

Lens Focal Length:

• F2.0, 4mm fixed lens

Field of View:

• Diagonal: 107°, Horizontal Field: 89°, Vertical Field: 48°

Video

Video Compression:

• Support H.265+/H.265/H.264; Support dual stream and the stream 500~8000kbps adjustable; Support PAN and NTSC System

Frame Rate:

• 5MP/ 4MP max support 25fps, below 3MP max support 30fps

Image Output:

Main Stream:

• 2880*1620,2592*1520,2560*1440,2048*1520,2304*1296,1920*1080

Sub-Stream:

• D1,800*448,640*480,640*360,352*288

Audio

Audio Compression:

• G.711

Sampling Frequency:

• 8KHz

Code Ratio:

• 64KHz

Al+

General:

• Human detection, Motion detection, Car detection, Intrusion alarm, Line crossing detection

Alarm:

• SD card recording, APP alarm, Sound and light alarm

Network

Communication Protocols:

• Support TPS, GHPC, RTSP, P2P; Compatible with ONVIF and other network protocols

APP

Mobile View:

• Android, IOS (APP: Seetong)

Interface

Communication Interface:

• 1 RJ45 10 M / 100 M Ethernet interface; 8KV anti-static capability

TF Card Slot:

• Supports (Max 512G )

Microphone:

• Built in

Speaker:

• Built in

Signal Interface:

• 2 signal lamp BMW light board control output interface; 1 IRCUT interface; support IR-CUT and image linkage control

Light

White Light Distance:

• Up to 20 m

IR Distance:

• Up to 20 m

LEDS:

• 2 IR LEDS + 2 Warm Light

General

Power Supply:

• DC：12V±25％, POE (1236, 4578)

Power Connector:

• Φ5.5mm circular interface

Power consumption:

• DC12V, 0.55A Max Consumption: 6.6W

Operating Conditions:

• (-25℃ ~ 50℃) humidity 95% or less (non-condensing)

Factory Data Reset:

• Support

Material:

• Full Metal

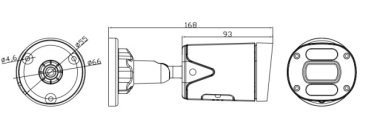

Dimension:

• Product：168*71*70mm
• Packing：200*78*75mm

Weight:

Net weight:

• 310g

Gross weight：

• 385g

Weather Proof Rating:

• IP66

Camera

Image Sensor:

• 1/2.7" CMOS

Solution:

• SSC30KQ+SC500AI

Mini Illumination:

• Color 0.001Lux@F1.2(AGC ON), Black and White 0Lux(IR ON)

Digital Noise Rdti:

• 2D and 3D DNR

General Function:

• Horizontal flip and vertical flip

Lightning Protection:

• Lightning Protection 6000V, Comprehensive lightning protection of power supply and network, passed ITU-T K.21-2008, IEC61000-42/IEC61000-4-5 d h lihi i dd

Business Function:

• Support: OSD, real-time video transmission, intelligent detection and alarm linkage, and “Seetong” cloud service, Web preview

Lens

Lens Focal Length:

• F2.0, 4mm fixed lens

Field of View:

• 107°diagonal field, 89°horizontal field, 48°vertical field

Video

Video Compression:

• Supports:H.265+/H.265/H.264; Support dual stream and the stream 500~8000kbps adjustable; Support P system and N system

Frame Rate:

• 5MP/ 4MP max support 25fps, below 3MP max support 30fps

Image Output

Main Stream:

Sub-Stream:

• D1,800*448,640*480,640*360,352*288

Audio

Audio Compression:

• G.711

Sampling Frequency:

• 8KHz

Code Ratio:

• 64KHz

Al+

General:

• Human detection, Motion detection, Car detection, Intrusion alarm, Line crossing detection

Alarm:

• SD card recording, APP alarm, sound and light alarm

Network

Protocols:

• Support TPS, GHPC, RTSP, P2P; Compatible with ONVIF and other network l

APP

Mobile View:

• Android, IOS (APP: Seetong)

Interface

Communication Interface:

• 1 RJ45 10 M / 100 M Ethernet interface

TF Card Slot:

• Supports (Max 512G )

Microphone:

• Built in

Speaker:

• Built in

Signal Interface:

• 2 signal lamp BMW light board control output interface; 1 IRCUT interface; support IR-CUT and image linkage control

Light

White Light Distance:

• Up to 20m

IR Distance:

• Up to 20m

LEDS:

• 4PCS Dual Wick Lamps

General

Power Supply:

• DC：12V±25％, POE (1236, 4578)

Power Connector:

• Φ5.5mm circular interface

Power consumption:

• DC12V, 0.56A Max Consumption: 6.7W

Operating Conditions:

• (-25℃ ~ 50℃) humidity 95% or less (non-condensing)

Factory Data Reset:

• Support

Material:

• Housing plastic, metal front case

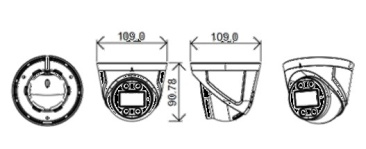

Dimension:

• Product: 109*109*91mm
• Packing: 113*113*102mm

Weight:

• Net weight: 255g
• Gross weight: 330g

Weather Proof Rating:

• IP66
